Carbon e-gravel bike frame full hidden cable MAHLE X20 rear motor

Carbon e-gravel bike frame full hidden cable MAHLE X20 rear motor

FM-R955HE Hydraulic Mahel X20 rear motor

  • Item NO.:

    FM-R955HE
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Detail

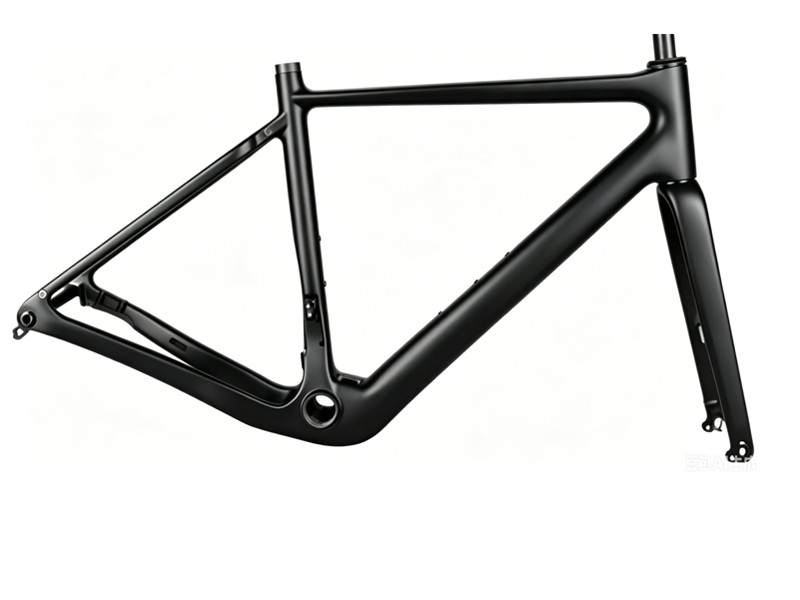

carbon e-bike gravel frame


Item NO. FM-R955HE

Carbon e-bike gravel frame

Appearance ........ UD

Head Tube ........ .. ........ 1-1/2"/1-1/2"(Compatible FSA ACR/SMR System)
Bottom Bracket ..... BB386
Motor System ........... ... MAHLE X20(Rear Motor)
Seat Post t......... ..... 31.6mm
Brake Set.. .... Flat Mount Disk
Drive Train......... ..... Di2/Mechanical, full Integrated
Tire Clearance .. 700C-42mm,650Bx2.1"
QR S . Front 12mm axle, Rear 12mm axle UDH Hangerless
Weight 1150g,+/-40g

Special Feature Smooth-wall Technology, Damping System with Innegra Fiber

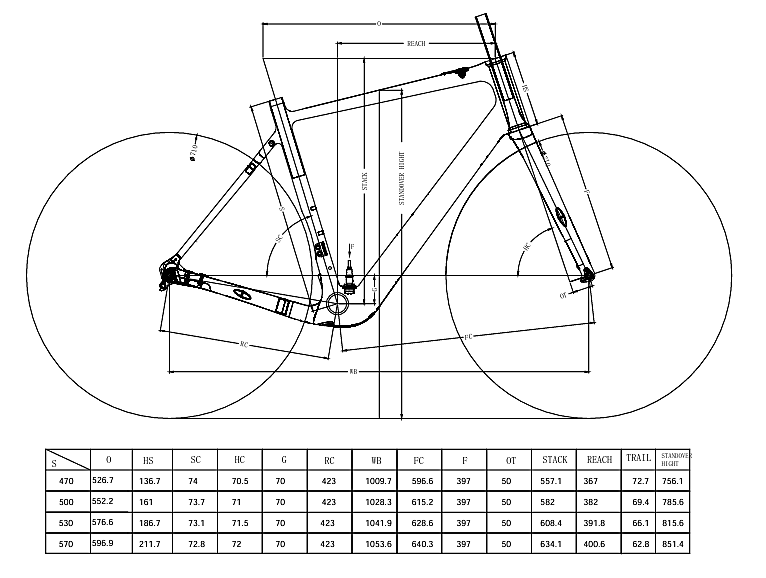

Frame size chart:

carbon gravel frame
