When you’re choosing carbon rims or a carbon frame, understanding the differences between UD, 3K, and 12K weaves can make a big difference. Each type affects weight, stiffness, and durability in unique ways. By learning how these fibers work, you can pick components that match your riding style, whether you’re aiming for lightweight performance, a strong frame, or a stylish finish.

What Do 3K, 12K, and UD Mean?

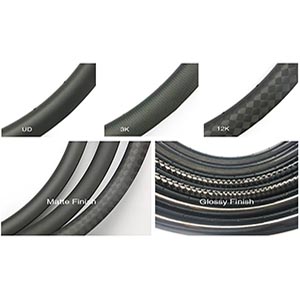

When you look at carbon rims or frames, you might see labels like UD, 3K, or 12K. You might wonder what these terms actually mean. UD (unidirectional) fibers run all in the same direction, providing maximum strength along that axis. 3K means 3,000 individual fibers are bundled together in one tow, creating a fine woven pattern. 12K means 12,000 fibers in a tow, forming a thicker, bolder weave. These differences affect both the surface appearance and certain mechanical properties of rims and frames.

How Tensile Strength and Modulus Affect Carbon Rims and Frames
The cost of carbon fiber increases as the tensile strength or tensile modulus increases. And for carbon fiber weaving also determines the cost of the material, with a larger woven prepreg (for example, 12k), the cost is lower, because the manufacturing cost is lower.
When you’re choosing carbon rims or frames, tensile strength determines how much force the fiber can handle before breaking, while tensile modulus measures how stiff the fiber is. Higher modulus fibers make your rims and frames feel more responsive and rigid, especially under heavy loads or during fast cornering. Understanding these properties helps you pick components that match your riding style and performance needs.
The carbon fiber layer (prepreg) has maximum strength only along the length of the fiber.

Mechanical and Visual Benefits of 3K and 12K Woven Carbon Fiber
Appearance and Texture
The main purpose of woven carbon fiber is for appearance. But 3k woven carbon fiber has a mechanical advantage. Placing 3k braided carbon fiber around the hole area can prevent carbon fiber lamination when processing the hole.

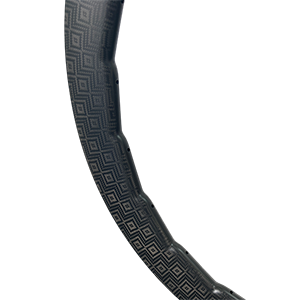

The woven pattern adds a distinctive surface texture, giving your rims or frames a professional, high-end look. 3K weaves show a fine checkerboard pattern, while 12K fibers create a bolder, more pronounced texture.
Surface Reinforcement
Using woven layers in specific areas helps reinforce critical points like mounting holes or edges. When you ride aggressively or transport your bike, this added reinforcement reduces the chance of delamination and surface damage, keeping your components durable and visually appealing.
Practical Benefits
For riders, combining UD layers with woven 3K or 12K layers offers the best of both worlds: high structural performance from UD fibers and additional surface strength plus aesthetic appeal from woven fibers.

Comparing Weight Differences Between UD, 3K, and 12K Carbon Fiber
Understanding how weight varies between different carbon fiber weaves can help you choose the right rims or frame for your riding style. Let’s break down how UD, 3K, and 12K fibers compare in practical use.
Weight Differences in Rims
For the weight difference, the woven fibers have some areas that cross each other. Therefore, woven fibers are heavier than UD fibers. However, for the rim, the size of carbon fiber is not large, only one layer is different, and the weight of woven fiber (3k & 12k) and UD fiber is not much different. In addition, all rims have a weight range, for rims, it is +/-15g. Therefore, sometimes, 3k rims and frames are lighter than UD.
Even though woven fibers cross each other, the small amount of material used in a rim layer means the weight difference is often negligible. When you choose a rim, you might notice only a few grams of difference between UD and 3K or 12K options.
Weight Considerations for Frames
For big size product (like frame), 3k frame will be heavier than UD. And for 12k, the weight different is not much difference.
When selecting a full frame, UD fiber is generally lighter due to its linear fiber orientation. 3K layers can add a slight increase in weight, while 12K fibers usually keep the weight close to UD levels. Considering your riding goals, whether you want ultimate lightness or reinforced durability, will help you decide which weave fits best.

Carbon Fiber Weight Comparison Table

Which Carbon Fiber Weave Is Best for Your Bike Project?
Choosing the right carbon fiber weave depends on your priorities for performance, durability, and appearance. Let’s explore which type might be the best fit for your bike.
UD Fiber for Maximum Performance
If you prioritize stiffness and minimal weight, UD carbon fiber rims and frames are ideal.
When you ride aggressively or compete in races, UD fibers give you the highest strength-to-weight ratio. They make your bike more responsive and lightweight, especially in critical structural areas.
Woven 3K and 12K for Appearance and Reinforcement
If you prefer a balance between strength, durability, and visual appeal, 3K or 12K woven layers may be more suitable.
For riders who care about how their bike looks while still needing reinforcement, woven fibers provide both surface protection and attractive texture. Placing 3K around holes or stress points can reduce delamination, while 12K layers add a bold visual pattern.
Combining UD and Woven Layers
At Top-Fire, we combine UD and woven layers strategically in our carbon rims and carbon frames to optimize both mechanical performance and aesthetics. You can also explore our carbon wheelsets and carbon fiber spokes for complete solutions.
By understanding the differences between UD, 3K, and 12K, you can select components that match your riding style, whether you’re focused on speed, strength, or visual appeal. For custom OEM inquiries, contact our team to discuss your project.
